If you are looking for advanced area scan cameras for your large industry that give you clear, actionable insights without heavy technical jargon. Whether you are a production manager, automation engineer, or quality control specialist, the area scan camera works effectively in every industry and is widely used for inspecting quality, machine vision, robotics, and detecting dimensions, & mainly capturing images of large areas. If you are ever confused about choosing the different types of industrial cameras, don’t be stressed. After reading this article, you have no doubt about the area scan camera, so stay tuned with us:
In this article, we will provide you with the information about the area scan cameras and help you find out the solutions to improving efficiency, reducing defects, and integrating modern imaging technologies. 57% of global manufacturing industries & plants adopt area scan cameras, and 43% of industries upgrade high-resolution industrial sensors. That’s why the area scan camera is driving 52% growth in pharmaceuticals, industry,l and defense sectors according to 360 Research Reports.
Table of Contents

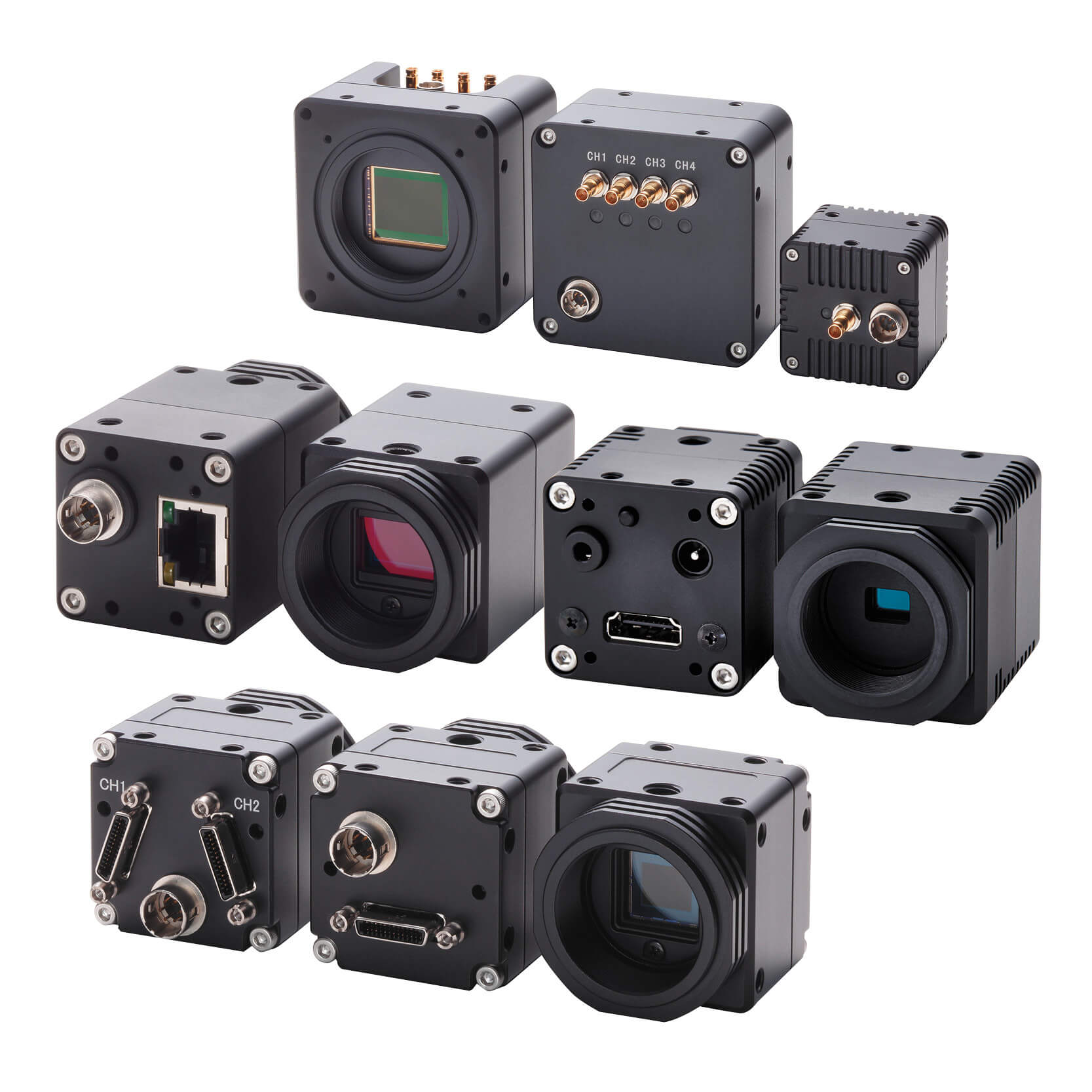

What Is An Area Scan Camera?
Normally, when you take a photo with your cell phone or camera, it’s pretty straightforward, right? But the area scan camera works like an advanced smart camera that easily captures images in one frame at a time. This camera didn’t work like normal line scan cameras; it covers the entire area and captures the entire field of view at once.
The area scan cameras also use sensors called CMOS or CCD sensors, which convert light into digital images. As a result, the full snapshot of the scene is instantly ready for analysis.
How Does The Area Scan Camera Work?
The area scan camera works by capturing the image of a wider area, and the rectangular sensor has millions of pixels. Every pixel converts lights into the tall data, creating a high-resolution image in a single snapshot.
- The area scan camera collects light from the object and analyzes the scene.
- Sensors easily transform lights into electrical signals.
- The smart processor of the camera connected with the computer and perfectly analyzes the image.
- The processed image easily targets the automation scene, actions, and provides information about defective products.
What Are The Key Components Of Area Scan Camera?
The industrial machine vision cameras are the most favorable in large industries, because they help to bring speed, accuracy, and flexibility in the industry. There are various perks include:
- It captures the high-resolution image and provides details for inspection.
- It is perfect for high-speed production lines.
- It’s compact and the right design suitable for large industrial setups.
- This area scan camera comes with smart connectivity because it easily connects with smart sensors like GigE & USB Vision Camera and safety Products.

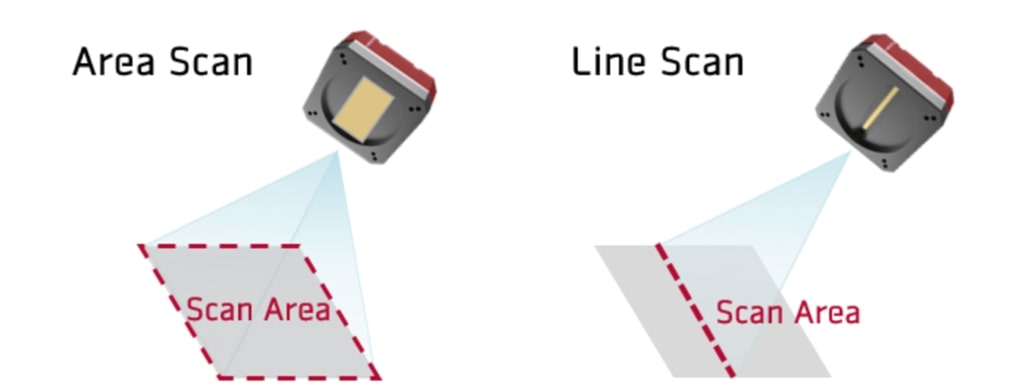

What is the difference between Area Scan and Line Scan Cameras?
| Feature | Area Scan Camera | Line Scan Camera |
| Image capture | Full image at once | One line at a time |
| Best for | Static or slow objects | Continuous motion |
| Setup | Easier | More complex |
| Cost | Usually lower | Often higher |
What Are The Common Industrial Applications Of An Area Scan Camera?
The automated inspection camera is installed in various line scan cameras, and it is mostly used for detecting errors and capturing activities in the industry.
- Quality control in the manufacturing unit because it easily detects defects, scratches, or misalignment.
- Machine vision: this area scan camera helps guide cameras, production lines, and assembly belts.
- Accurate measuring: it accurately measures the dimensions & shape of parts.
- Packaging & Labeling: scan camera help for verifying, correcting labeling, barcodes, and the packaging industry.

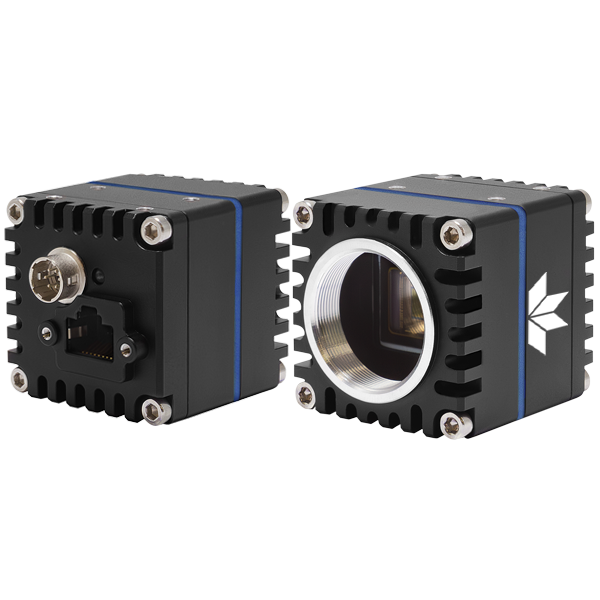

- Electronic manufacturing: it properly inspects the circuit board components,nuts, and faults.
- Food industry: ensure the product safety, consistency, reliability, quality, and compliance.
How do the large industries use the area scan camera?
Large industries adopt area scanning cameras to improve efficiency, accuracy, and automated production. The area scan cameras capture high-resolution images in a single shot by allowing industries to:
Step 1: Mount the camera securely
Step 2: Set up proper lighting
Step 3: Adjust focus and field of view
Step 4: Capture sample images
Step 5: Configure vision software rules
Step 6: Test under real production conditions
What Are The Benefits And Limitations Of An Area Scan Camera?
By installing the line area scan cameras, your industry gets various benefits, but you already know everything,g or goods come with perks and limitations, so let’s understand:
Benefits:
- Capture high resolution image
- Easy to integrate with sensors from every industry.
- Accurate measurements
- Fast and effective for inspecting and moving objects
- Versatile Applications working with robotics, quality inspections
Limitations:
- It can miss the details in faster-moving objects
- Limited field view
- Lightning sensitivity
- Higher data load
If You Want To Choose The Best Industrial Area Sensors That Helps For Improving Production And Reducing Defects In The Industry So Choose The Reliable Partner Like Unseen Era.
People Also Ask Questions About What An Area Scan Camera Is And How It Is Used In Industry.
Q.1 Why is the Area Scan Camera Used In Large Industries?
A: This area scan camera is used in large industries because it provides you with detailed inspection and high-resolution images in wider frames. It helps in improving efficiency, accuracy, and product consistency in high-volume production.
Q.2 Is The Area Scan Camera a Cost-Effective Solution For The Manufacturing Industry?
A: Yes, the industrial area scan camera is working best for the manufacturing industry because it helps to reduce manual inspection, improve production costs, and minimize defects to ensure consistent product quality.
Q.3 How Does It Reduce Manual Errors In Every Industry?
A: The area scan camera helps to reduce manual errors by capturing images of every minor product defect, misalignment, or inconsistency over time.
Q.4 Does This Area Scan Camera Integrate With AI?
A: The high-resolution industrial camera is smartly integrated with AI-based industrial sensors. It works with AI algorithms that make it best for detecting defects in production lines.
