Most of the industries are facing common challenges in finding equipment. Imagine you are running a high-demand operation where every second counts and every single mistake can be the cause of lost revenue and downtime. That’s why at Unseen Era, introducing the MV-ID2016M-06S-WBN, that engineered to meet the toughest demands of modern industries to deliver long-lasting performance.
If you are looking to upgrade or replace your current system to ensure smooth operations, reduce downtime, and proper utilization of resources. We build it with advanced and premium materials to protect long-term investment with cost-effectiveness, reliability, and efficiency.
We deliver the AI-powered barcode scanner for manufacturing with a robust design and high-performance industrial code reader to deliver decoding and manufacturing 2D code environments. It works with smart decoding algorithms for production line, packaging, and logistics, and a traceability system.
Why Choose The MV-ID2016M-06S-WBN Industrial Reader?
The MV-ID2016M-06S-WBN sensor is built with a tailored design to customer needs and preferences. Every business needs a reliable and capable code reader for fast production environments. It comes with 68 codes per second scanning ability for manufacturing units in harsh environmental conditions. In-built global shutter sensors are designed to freeze images of fast-moving objects, and they also support 1D and 2D symbologies to ensure uninterrupted operations.
Its heavy-duty compact and flexible design makes it a perfect solution for production lines, conveyor lines, and inspection stations. The M10 manual focus knob allows precise adjustment, keeping the setup clean and clutter-free. It is built with IP67 protection to tolerate operating temperatures, and it is certified for industrial-grade performance in demanding conditions.
An industrial 1D/2D scanner comes with support for multiple communication protocols, which makes it suitable for diverse manufacturing and high-speed production line scanner systems. This is energy efficient and ensures long-term investment savings. It is applicable for every industrial hub, like robotic arms, packaging lines, logistics hubs, and conveyor belts.
Major Key Benifits Of Choosing MV-ID2016M-06S-WBN
Rugged and industrial grade:
- It comes with an IP 67 rating to face every harsh, rough, and tough environment.
- It faces the temperature range from 0 °C to 50 °C (storage –30 °C to 70 °C).
- It features white and green LED illumination to ensure accurate scanning in low-light conditions.
- It is certified and provides compliance assurance.
Connectivity:
- It supports TCP, ProfiNet, earthen, and Fins.
- Its energy-efficient design reduces power consumption, saving operational costs.
Application-ready capabilities
- This is most usable for close-range inspection in a 40mm to 120 mm working distance.
- IDMVS software is compatible with the software setup and diagnosis.
- It is ideal for Industrial barcode scanners and readers for food processing lines, the pharma industry, and logistics.
Speed and accuracy:
- It is reliable to read 68 codes per second
- Compatible with 1D linear barcode and data matrix symbologies.
- A global shutter sensor helps to detect free images or moving parts.
Applications of MV-ID2016M-06S-WBN
The MV-ID2016M-06S-WBN is designed for industrial and commercial applications. Where the fast-working and reliable code readers are essential. It reads both 1D and 2D barcodes across production lines and logistics centers. It is suitable for the Barcode scanner for automotive assembly line inspection and the manufacturing industry because it supports inventory management, logistics, and warehousing.
- In the food and beverage industry, it ensures accurate product labeling and traceability of every high-speed production line.
- Helps to track medicines, expiry dates, batch codes, and compliance with strict regulatory standards.
- In the automotive industry, it identifies the assembly and quality inspections.
- It supports tracking and inspection of barcodes in the production line.
- It continuously reads barcodes and monitors product sizes to ensure smooth operation across the production line.
Why Unseen Era Is The Best Partner For MV-ID2016M-06S-WBN?
Choosing the right partner is important for every industrial operational product. At Unseen Era, we tailored solutions according to every business’s needs. Our professional team not only provides, MV-ID2016M-06S-WBN code reader to engineers with design, integration, and troubleshooting. Our ever product ensures you receive the highest quality and most reliable equipment. We make your investment smarter and offer flexible ordering options to give you both value and peace of mind.

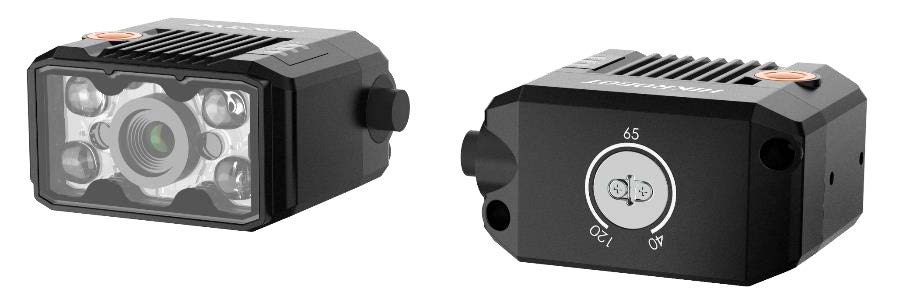

6mm focal length 1.6MP PRO Series Compact Industrial Code Reader
Key Feature
- Compact design and small in size.
- Adopts aviation connector for single cable wiring.
- Adopts LED aiming light to help aim codes.
- Adopts focus knob for adjusting focusing manually.
- Adopts multiple IO interfaces and plug-in power interface.
Specifications
| Model | Product Model | MV-ID2016M-06S-WBN |
| Type | 6mm focal length 1.6MP PRO Series Compact Industrial Code Reader | |
| Performance | Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 60 fps | |
| Max. reading speed | 68 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Sensor size | 1/2.9″ | |
| Resolution | 1408 × 1024 | |
| Exposure time | 16 μs to 1 sec | |
| Gain | 0 dB to 15 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, UDP, Fins | |
| Electrical feature | Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1. Device trigger via pressing button on side supported. | |
| Power supply | 12 VDC to 24 VDC | |
| Max. power consumption | Approx. 3.8 W @ 24 VDC | |
| Mechanical | Focal length | 6.72 mm |
| Lens mount | M10-mount, adjusting focus manually supported | |
| Working distance | 40 mm to 120 mm | |
| Ambient illumination | 0 lux to 50000 lux | |
| Light source | White | |
| Aiming system | Green LED | |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) | |
| Dimension | 46 mm × 38 mm × 25 mm (1.8″ × 1.5″ × 1.0″) | |
| Weight | Approx. 160 g (0.4 lb.) | |
| Ingress protection | IP65 | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|
| Humidity | 20% RH to 95% RH (no condensation) | |
| General | Client software | IDMVS |
| Certification | CE, RoHS, KC |
Frequently Asked Questions?
Q.1 How does this reader work under 115 VAC / 60 Hz environments?
A: This industrial barcode reader uses 12–24 VDC input. This is powered through an industrial power adapter, PSU circulates 12–24 VDC output. This is integrated with automation control cabinets.
Q.2 Do these industrial barcode readers connect with traditional machinery systems?
A: Yes, this industrial barcode reader is designed for a high-speed production line scanner that comes with seamless traditional machinery and an automated system. It supports various protocols like Modbus, Ethernet, and RS-232. It connects with the traditional machinery system easily. This barcode scanner ensures smooth operation in industry, enhances traceability, and efficiency without the need for major system updates.
Q.3 What is the benefit of the MV-ID2016M-06S-WBN industrial barcode reader?
A: This industrial barcode reader helps to deliver accurate, fast, and reliable code scanning data in every harsh industrial environment. Their 1D and 2D capability of readers in high speed makes it versatile connectivity in every food and beverage, a High-accuracy code reader for pharmaceutical traceability, and manufacturing industries.
Q.4 Does it work with AI-based technology?
A: Yes, this industrial MV-ID2016M-06S-WBN sensor works with compatible and AI-based technology that allows seamless integration with AI-based learning algorithms to control and detect real-time data.
Q.5 Can this MV-ID2016M-06S-WBN work with high-speed production lines?
A: Yes, it works with high-speed production lines; it reads 68 codes per second and reduces manual inspections.
Q.6 How to maintain a MV-ID2016M-06S-WBN?
A: Maintaining the MV-ID2016M-06S-WBN ensures long-term reliability for optimal performance. You need to clean lenses, dust, and debris so that the reader can easily read the barcode.
